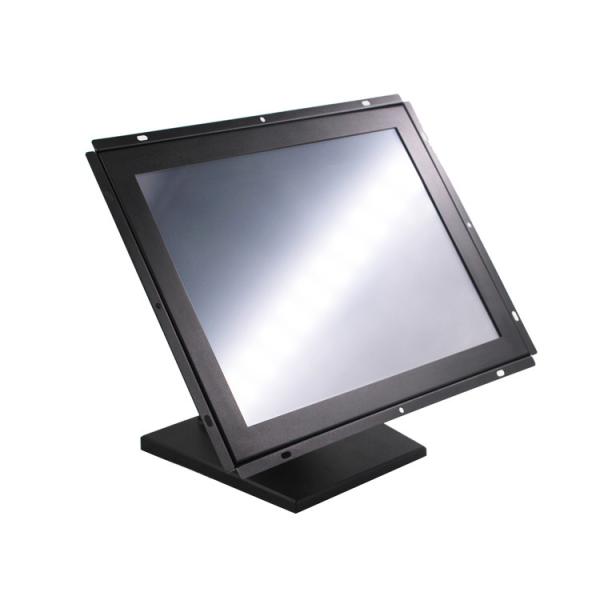

Industrial Open Frame 15'' Linux Touch Panel Pc With Intel I3-7100 Processor
Features
1. 15inch industrial lcd, 1024*768 resolution
2. Intel core I3-7100U
3. 4G RAM, 64G SSD hard disk capacity
4. Interfae: 4*USB, 1*VGA, 1*COM, 1*LAN
5. Durable metal enclosure
Configuration
| Processor System | CPU | Intel core I3-7100U/1.8GHz |
| Memory | 4GB-8GB |
| Storage | 64G SSD(up to 1TB) |
| Operation System | Windows 7/8/10 OS(trial version) |
| LCD Panel Characteristics | Screen Size | 15-Inch Lcd Panel |
| Touchscreen Type | Capacitive touch screen / Resistive touch option |
| Resolution | 1024(H)x768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 250cd/m2 |
| Contrast Ratio | 500:1 |
| Response Time | 10 msec |
| I/O Interface | COM | 1*RS232(RS485/RS422 optional) |
| USB | 4xUSB2.0 |
| LAN | 1xRJ45, 10/100/1000 Mbps |
| HDMI | yes |
| VGA | 1xVGA |
| Function | WIFI |
| Optional | RFID/ NFC card reader |
| 8-36V wide range voltage |
| Brightness control button |
| 1000nits High Brightness for sunlight readable |
| Front waterproof / Full sealed Waterproof |
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption |
| Accessories | 8A Power Adapter with cable |
| Working Temperature | -20~70° C |
| Other Information | Material | Metal frame |
| Color | Black/Silver/White |
| Mounting | VESA mount / Embedded |
| Certificates | CE/ RoHS / FCC |
Detailed Image
Application
Intelligent Fab Automation
HMI system
Self-service pay station
Electrical fire monitoring system
water supply control cabinet
Parking payment machine
Intelligent Transportation
medical equipment
Electric control cabinet
Ticket Vending Machine
Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least
13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc
5. No MOQ limited
We can provide sample first to test it for the big project.
Any interested, welcome to ask for more information
